Click to choose your colour, or click on the zoom icon to see it up close. Disclaimer: We cannot guarantee to match existing colours. For a colour match, please email us with your address for a free swatch.  Flat White, RAL 9016White grained for a superior look, RAL 9010Classic-cream grained, RAL 9001Classic-cream grained, RAL 9001 with flat White insideChartwell-green grained with flat White insideAgate-grey grained, RAL 7038 with flat White insidePebble-grey RAL 7032 with flat White insideIrish-oak woodgrainIrish-oak woodgrain with flat White insideGolden-oak woodgrainGolden-oak woodgrain with flat White insideRosewood woodgrainRosewood woodgrain with flat White insideSilver-grey RAL 7001 with flat White insideSlate-grey RAL 7015 with flat White insideAnthracite-grey grained, RAL 7016Anthracite-grey grained, RAL 7016 with flat White insideAnthracite-grey matt-smooth, RAL 7016 with flat White insideBlack-brown grained, RAL 8022Black-brown grained, RAL 8022 with flat White inside |
Frame coloursDoor frames are made of UPVC and are available in flat white or in woodgrain effect foiled colours. You can have white on the inside, or the same colour as on the outside in most colours. Frames are sculptured, similar to our own UPVC products.
Please note: Anthracite-grey matt-smooth frames are not in stock, please allow an extra month for delivery. Please note: Frames in Anthracite-grey on both sides will have white edging visible only when the door is open. If you prefer black edging just leave a note at checkout, but please allow an extra month for delivery. Disclaimer: We cannot guarantee to match existing colours. If you need a colour match, please email us with your address and ask for a sample of the colour you need.Door coloursAn extensive range of door slab colours. New inside colours: Now all the outside colours are also available on the inside of the door slab, independently of the outside colour. If you need even more colours, we can supply these door slabs in a RAL colour of your choice, please contact us with a link of your chosen door for a quote.

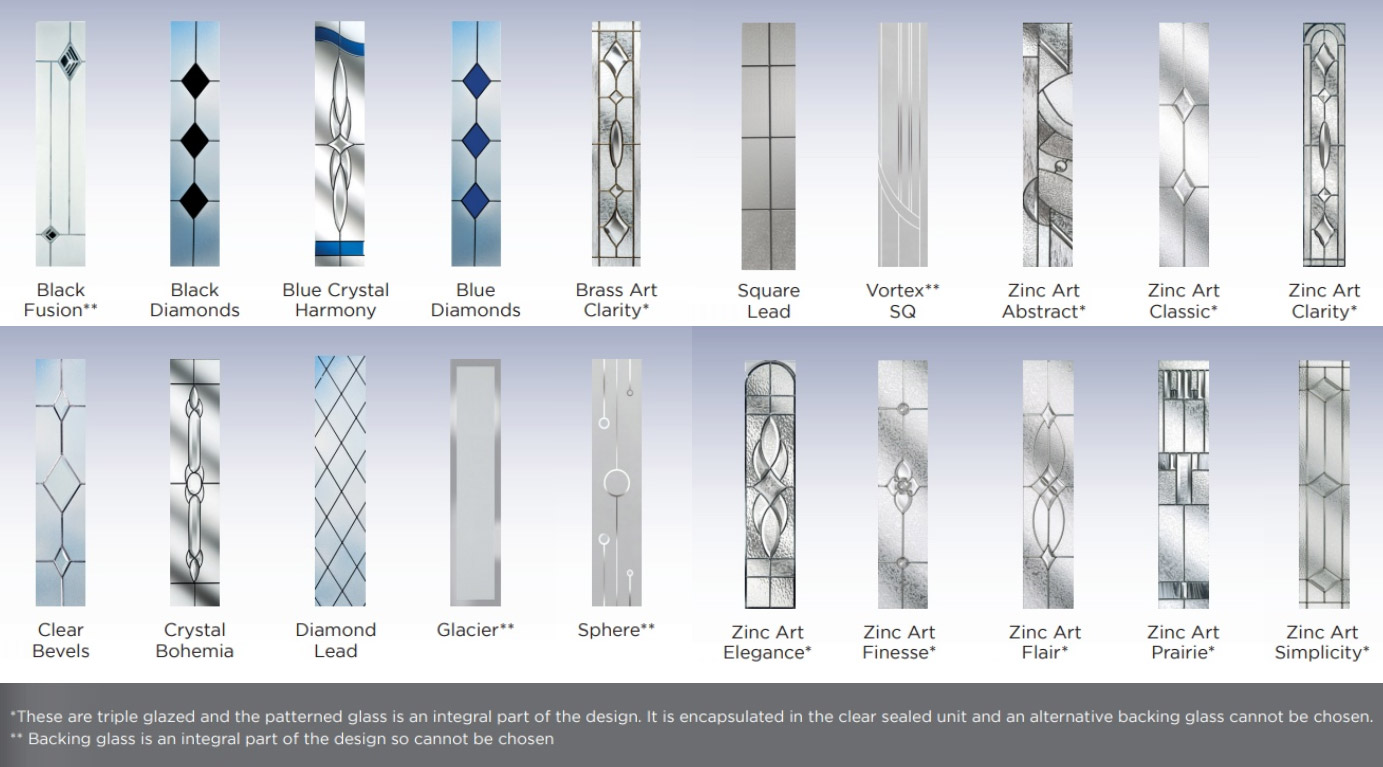

Disclaimer: We cannot guarantee to match existing colours. If you need a colour match, please email us with your address and ask for a sample of the colour you need. Door GlazingA vast range of beautiful glazing units, from simple obscure glass, coloured diamonds, traditional bevels to intricate triple glazed units with unique obscure designs.

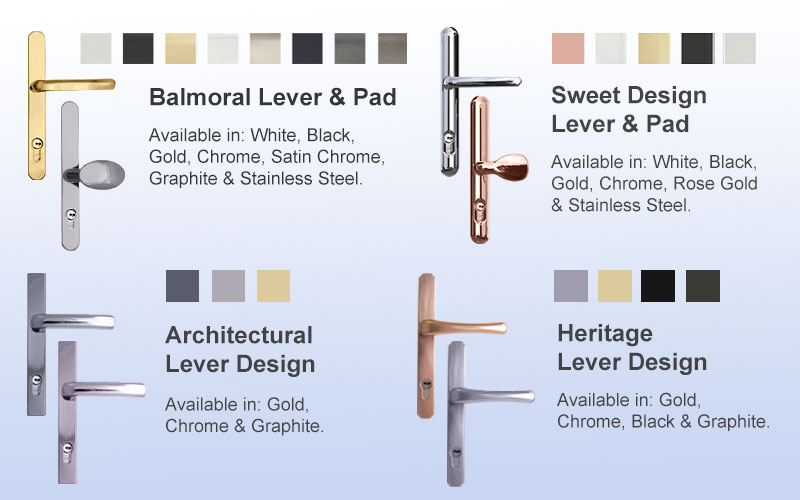

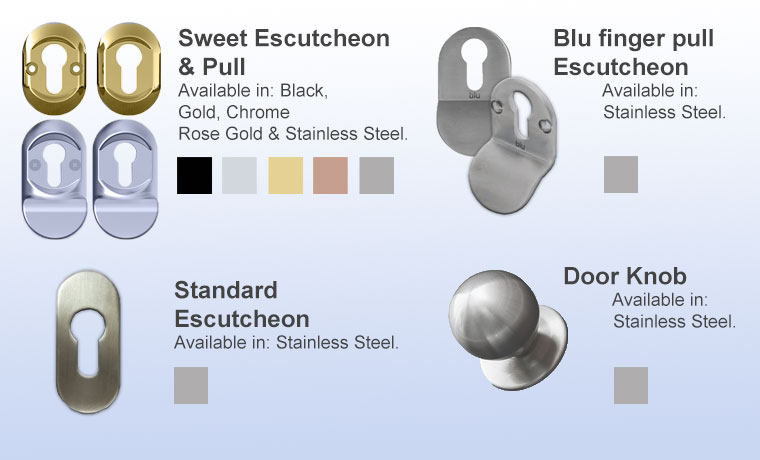

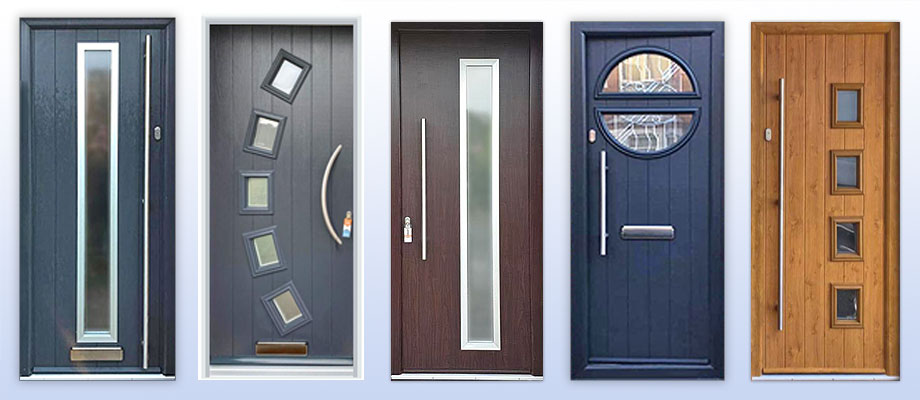

HandlesA vast range of handles and escutcheons in up to 7 colours, and many bars and knobs in stainless steel. For bar handles, knobs and escutcheons as there is no internal handle, a cylinder lock with a thumb-turn is recommended so you can quickly open the door without needing the key. Knobs are supplied loose to fit where you prefer. Pad - lever inside, pad outside: A pad handle does not allow the door to open from the outside without the key, even when unlocked. So the advantage is added security, but you have to be careful not to lock yourself out.

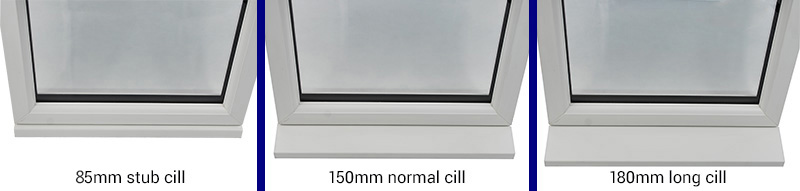

External cillMost doors require an external cill to drain water away correctly. If you already have a stone or tiled cill as part of the building you may not require a cill. Your door will be manufactured to the sizes given including whichever cill and threshold is chosen. The cill width will be 100mm wider than the left to right width of the door, so 50mm cill "horn" on each side. The cill depths are 85mm stub, 150mm normal that covers most situations, or 180mm long.
Please note: The cill height is 30mm and if a cill is chosen then these 30mm will be included within the overall height of the door.
Side window cillMost windows require an external cill to drain water away correctly. If you already have a stone or tiled cill as part of the building you may not require a cill. The cill depths are 85mm stub, 150mm normal that covers most situations, or 180mm long.
Please note: The cill height is 30mm and if a cill is chosen then these 30mm will be included within the overall height of the side window.
Cylinder locksWe supply these locking cylinders: Ultion *: 1 star Kite marked cylinder as standard. Also available with thumbturn option. Ultion ***: A superb 3 star Kite marked security cylinder with 11 pins, with a £2000 snap guarantee from Ultion. Required for PAS24 and Secured By Design. More information Ultion *** thumbturn: A superb Ultion security cylinder but with a thumb-turn inside. Note: For knob and bar handles we recommend a thumb turn inside, as there is no handle inside. All doors come with 3 keys.
SecurityHigh security (standard) PAS24 security Secured By Design (SBD)
Open inside/outsideOpen in: Typically doors open inwards into a building. The hinges have a good clearance of 48mm, so usually no side extender is needed. Open out: Good for back doors to save internal space. The hinges are on the outside.

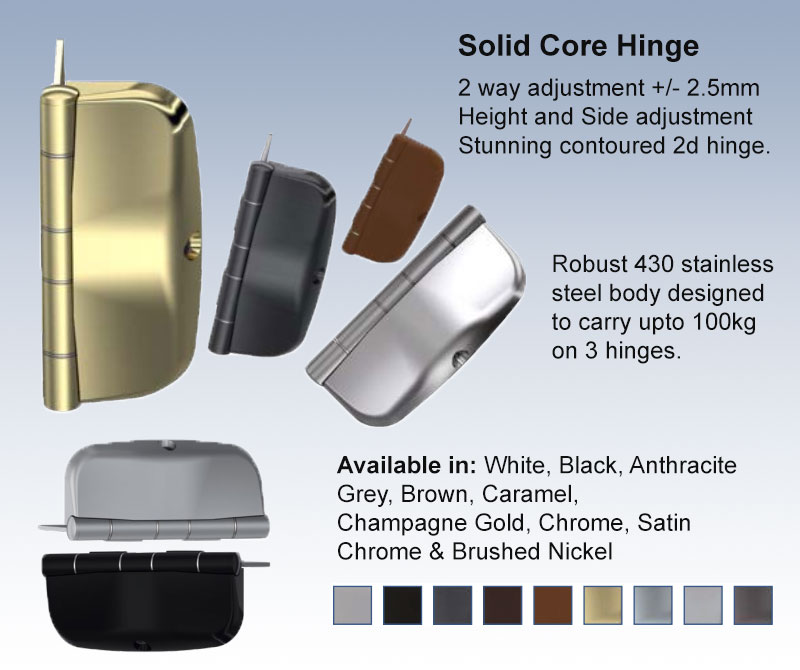

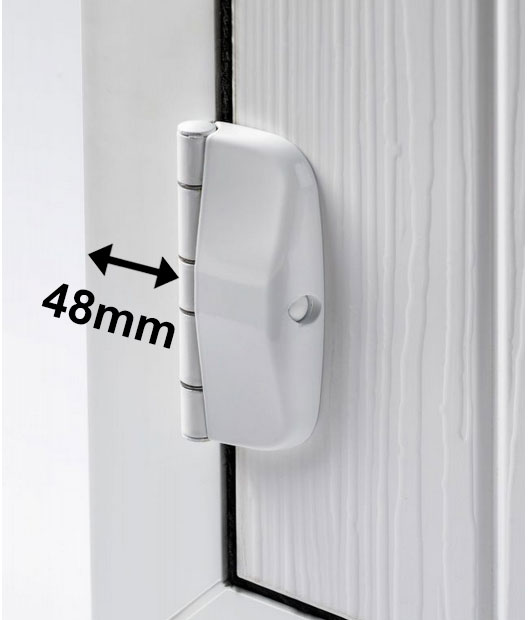

The distance from the hinge to the edge of the outer frame is 48mm: Adjustable hingesThe hinges are Face Fix slimline heavy duty for ease of installation. These hinges automatically set the correct compression so no need for adjustment. They allow adjustment to be made horizontally and vertically to +/- 2.5mm. Hinges can be at the left or right side of the door. The handle is always at the opposite side. In the case of a door with an additional side panel, we would recommend that the hinge be placed on the wall side. The distance from the hinge to the edge of the outer frame is 48mm.
Frame extendersA frame extender increases the thickness of a door frame at a specified side. Great for properties with deep plaster, render or tiles over tiles. Some fitters buy extenders as a precaution, for example where the door opening has not been built yet. Extenders can be modified to accomodate inconsistent side walls. Extenders simply clip or slide on the door profile as you can see on the picture. Please note: extenders for these doors are 10mm wide, so a 20mm extender is comprised of 2 x 10mm.
Example of 20mm extender sliding Thresholds
Your door will be manufactured to the sizes given including whichever cill and threshold is chosen.

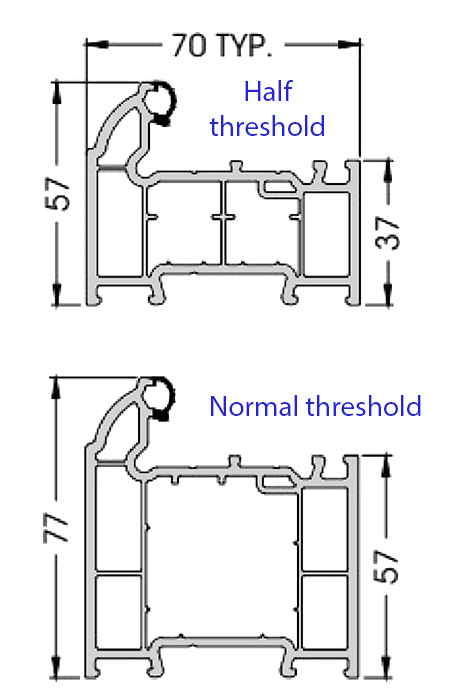

Normal thresholdNormal UPVC threshold 57 to 77mm high (not including any optional cill), with the benefit of a better seal and insulation.
Half thresholdAlso UPVC but only 37 to 57mm high. Low aluminium Stormguard™ threshold 15 to 25 mm high. In silver or gold.
Stormguard™ threshold 15 to 25 mm high. Part M wheelchair compliant, including front ramp. In silver or gold. No cill needed.

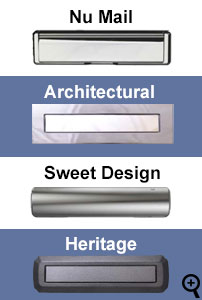

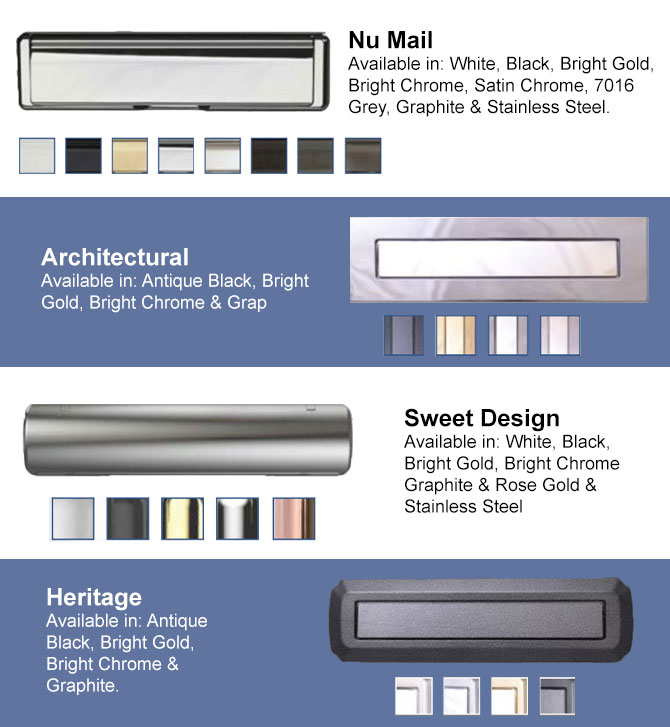

Note: On inward opening doors, please make sure there is sufficient clearance between the bottom of the door and the floor inside. LetterboxWe have a variety of letterboxes:
• Standard (Nu mail) design. Letterboxes are matched to your handle colour, so to change the letterbox colour please change the handle colour. To comply with PAS24 and Secured By Design (SBD), please add a Shield/Cowl to the inside of the letterbox for extra protection.

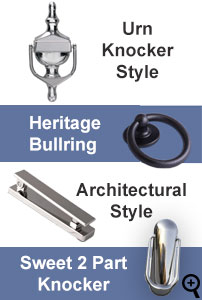

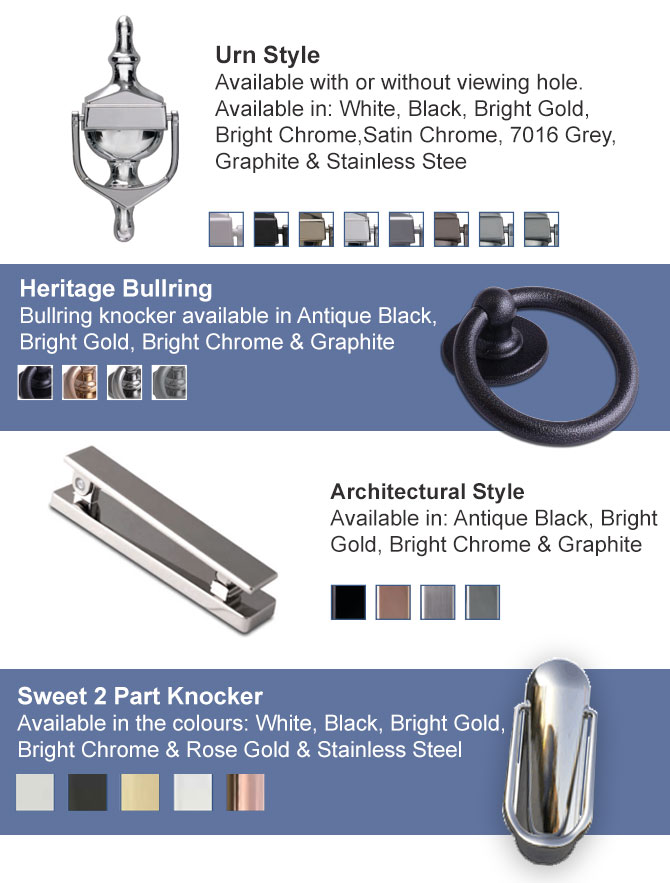

KnockersWe have a variety of knockers:
• Urn style knocker, available with Knockers are matched to your handle colour, so to change the knocker colour please change the handle colour. Some knocker examples Security chainThe ERA TS003 door chain offers certified heavy duty visual security for your home, supplied loose with fixings.
• Strong and simple to use - TS003 certified.
Fixing kitContains approximately 40 assorted packers of various thicknesses (1 to 4mm) ideal for aligning and fitting the frame and glass units (toe and heeling). Also approximately 12 concrete countersunk screws 7.5 x 120mm. These screws do not require wall plugs. How to video on Youtube.

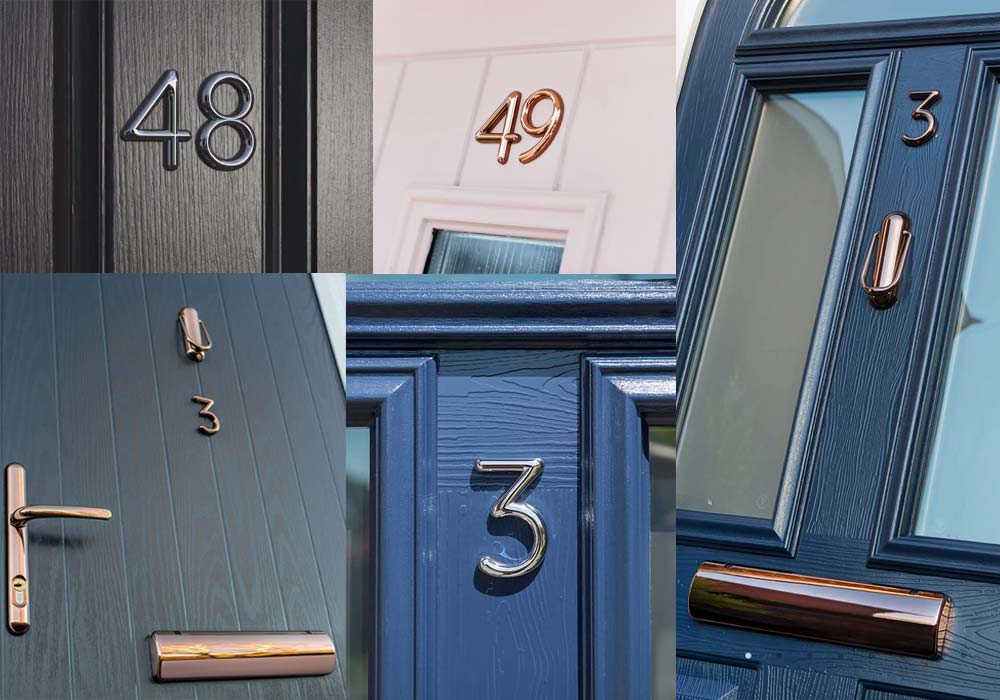

Door numbersDoor numbers show the house number in your chosen handle colour. They come in the Sweet brand complete with screwless fixings, except in white, graphite and satin chrome or when having chosen a Balmoral handle where Balmoral numbers may be supplied. You can have up to 4 digits 0 to 9 and letters a, b or c, or A,B,C,D,E,F for Balmoral which will be supplied loose with fixings. The numbers on our door designer generated images are just an example, as the numbers are supplied loose so you can fit them wherever you like. Balmoral example Sweet example Master / slave doorsYou can choose to have either side as the main opening door (master door). The master door must be opened first before the second (slave) door is able to open. Usually people just open only the master door. Please note Left or Right as viewed from the outside.
Opening example, master opens first, | ||||||||||||||||||||||||||||

| |||||||||||||||||||||||||||||
